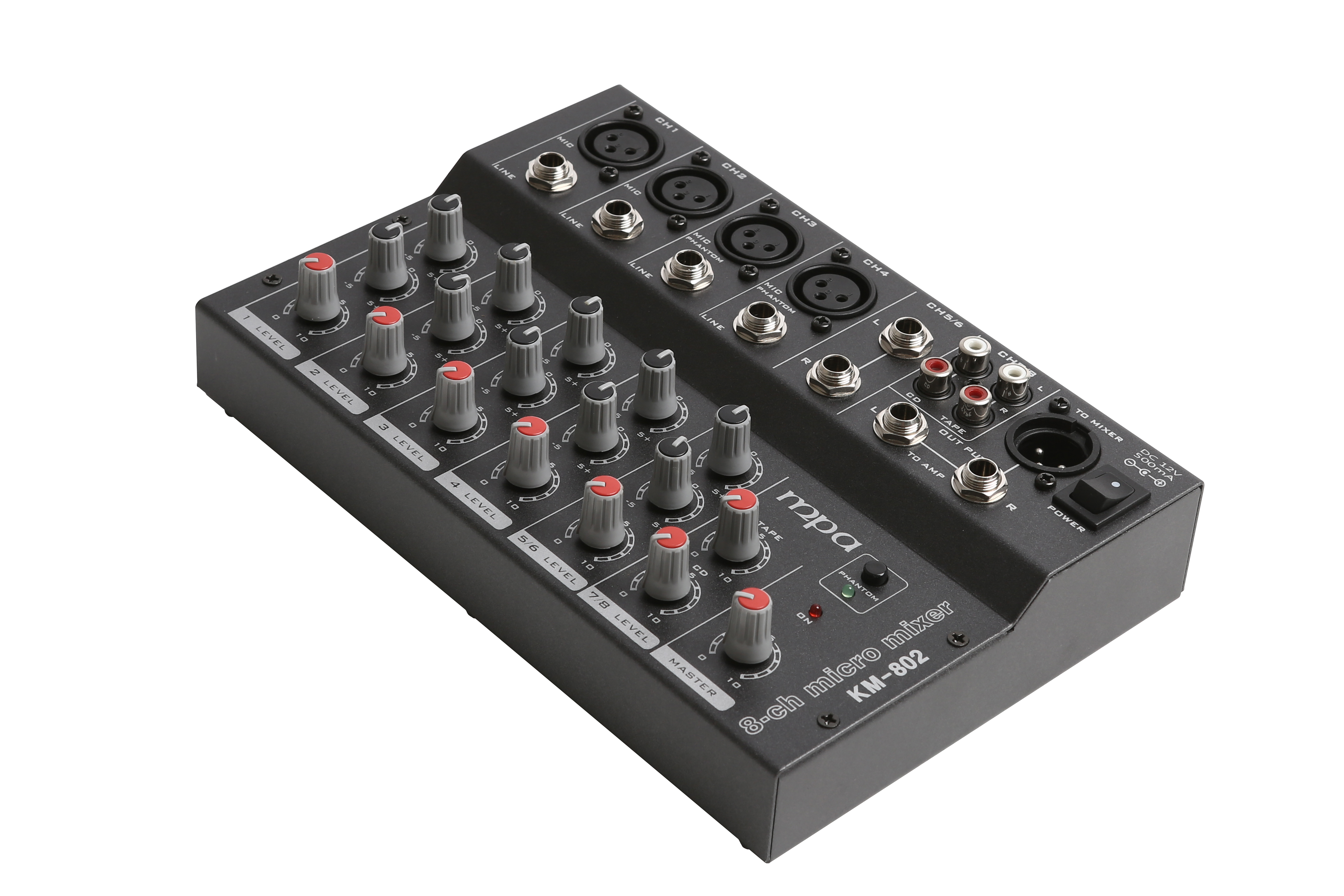

| KM-802 : ( 8-CH MICRO MIXER) |
 |
| |
|
|
|
 |
|
| Gain |
|
(at 1 kz, ±3 dB) |
|
| Equalizer |
|
Hi ±8dB /
10KHz LOW ±5dB /
100Hz |
|
| Frequency Response |
|
(ref 1 kz) 20 Hz
to 20 kHz, ±2 dB |
|
| Input Impedance |
|
Balanced Lo Mic 2 kΩ
Unbalanced Line 20 kΩ
RCA (Cd/Tape) 22 kΩ |
|
| Output Impedance |
|
Balanced Lo Mic 150 Ω
Balanced (L-R) 600 Ω
|
|
| Phantom Power Voltage |
|
0V or 48V selectable (3Ch-4Ch)
Balanced (L-R) 600 Ω
|
|
| Input Power |
|
DC 12V~14V, 500mA (Adaptor Included)
Balanced (L-R) 600 Ω
|
|
| Dimensions (WxHxD) |
|
220 x 53 x 145 mm |
|
| Weight |
|
1,100g(Without Adapter) |
|
|
|
 |
|
|
