| Gain |
|
1 kz, ±3 dB |
|
| Frequency Response (ref 1 kz) |
|
20 Hz to 20 kHz, ±2 dB |
|
| Input Impedance |
|
Balanced Lo Mic 2 kΩ / Unbalanced Line 20 kΩ / Aux 47 kΩ |
|
| Output Impedance |
|
Balanced Lo Mic 150 Ω Aux 2 kΩ |
|
| Input Clipping Levels (Min.) |
|
Balanced Lo Impedance Mic -22 dBV
Unbalanced Impedance Line -3 dBV
Aux -1 dBV |
|
| Output Clipping Levels (Min.) |
|
Balanced Lo Impedance Mic -20 dBV
Aux +9 dBV |
|
| Distortion Outputs (1 kHz) |
|
Balanced Lo Impedance Mic Less than 1%, -34 dBV
Aux +6 dBV |
|
| Phantom Power Voltage |
|
OFF, 12V or 48V selectable |
|
| Input Power |
|
DC 12V~14V, 500mA (Adaptor Included) |
|
| Dimension (WxHxD) |
|
260 x 44.5 x 130(mm) |
|
| Weight |
|
1,000g |
|

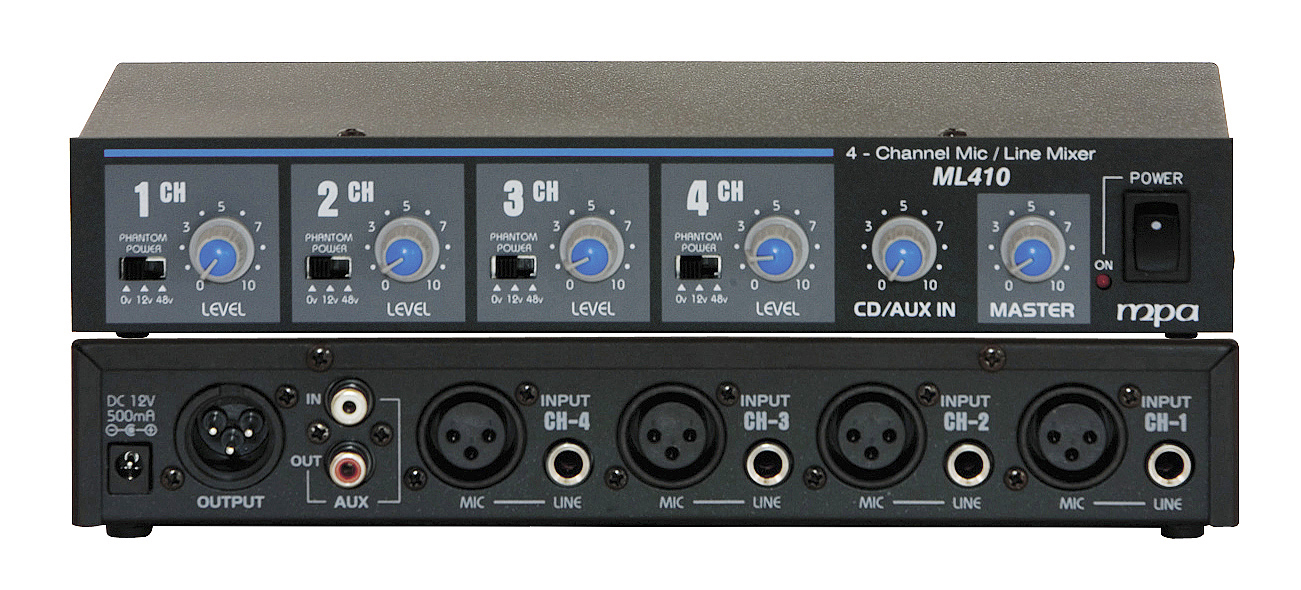

4-CH MICROPHONE / LINE MIXER
